Factory sale powder coated palisade fence panels/galvanized steel palisade fencing
- Type:Fencing, Trellis & Gates
- Place of Origin:CN
- Frame Material:Metal
- Pressure Treated Wood Type:Heat Treated
- Frame Finishing:Powder Coated
- Feature:Easily Assembled
- Feature:Eco Friendly
- Feature:FSC
- Feature:Pressure Treated Timbers
- Feature:Renewable Sources
- Feature:Rodent Proof
- Feature:Rot Proof
- Feature:Tempered Glass
- Feature:TFT
- Feature:Waterproof
- Brand Name:YIZE 7832
- Model Number:palisade fence
- Material:low carbon steel wire
- Color:White,Tan and Grey
- fence type:Palisade fence
- Usage:decoration for lobbies, garden, shopping mall etc.
- Surface treatment:Galvanized/ PVC Coated/powder coated
- wire diameter:3-6mm
- Certification:ISO9001:2008
- Height:1.6m,1.7m,1.8m,2.7m
- Length:1.8m, 2m, 2.2m, 2.4m or customized
- Sample:free sample
Factory sale powder coated palisade fence panels/galvanized steel palisade fencing
1.DetailedPalisade fenceDescription
"D"and"W"style
Fencing is supplied in 2.75m wide standard panels
for easy assembly on site.
Manufacture
best quality
2.Palisade Fencing Specification
Height | Post Dimensions | Rail Dimensions | Support Legs | Corrugated Steel Palisades |
1.2m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
1.5m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
1.8m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
2.0m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
2.1m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
2.4m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
2.7m | 102x44 or 100x55 | 50x50x6mm | 1 | W - 2.0mm or D - 3.0mm |
3.0m | 127x76 | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm |
3.6m | 127x76 | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm |
3. Palisade fence Construction

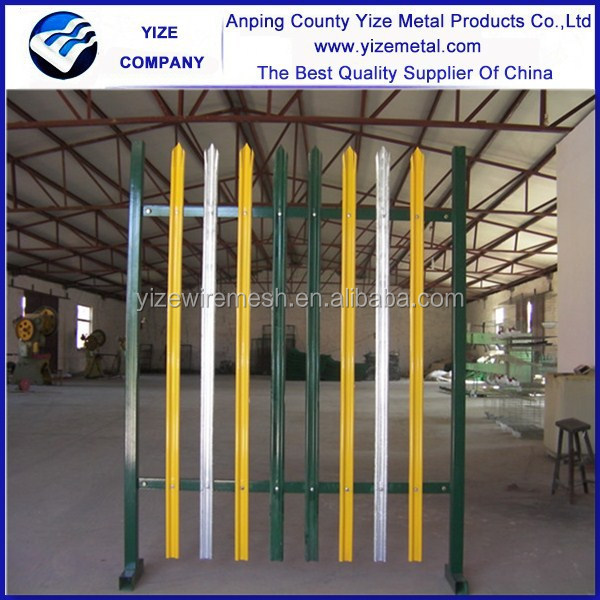

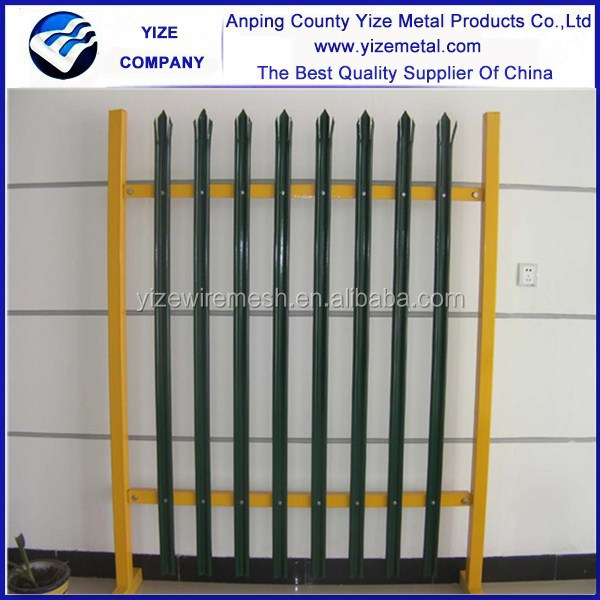

A standard palisade fence panel is constructed from hot and cold rolled steel sections supplied for assembly on site. Panels consist of 17 vertical pales manufactured in"D"or"W"profile with a choice of tops. The pales are fixed to rolled steel angle horizontals which are supported by 102 x 44 joist posts.
A fish plate passes through a slot in the post and secures the horizontal rail captive in its position. The pales are connected to the horizontals to form the panel and are held securely together by utilising vandal resistant security fasteners.
Long System Life .Fencing is hot dip galvanised to BS EN ISO 1461 ensuring complete protection with a long life span.
4. Features and Uses:

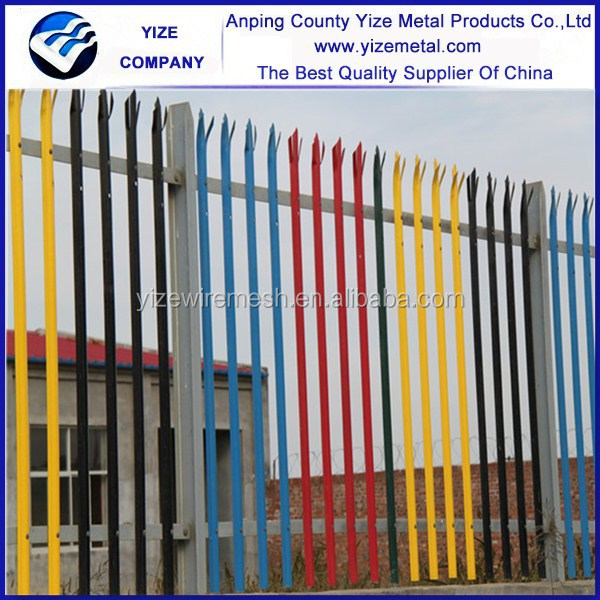

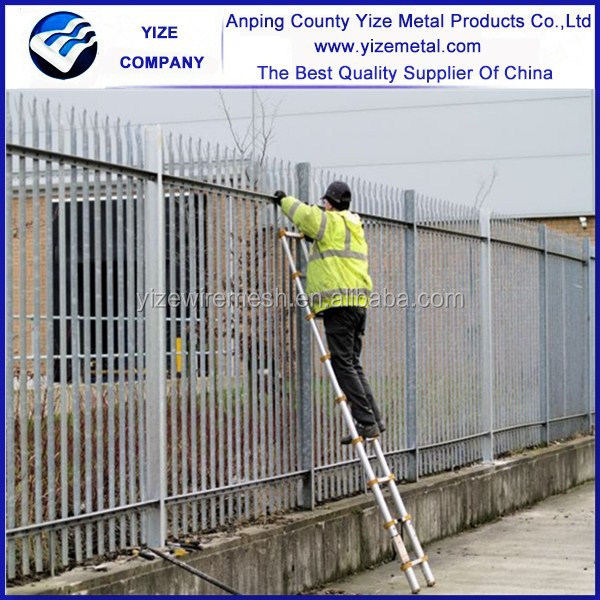

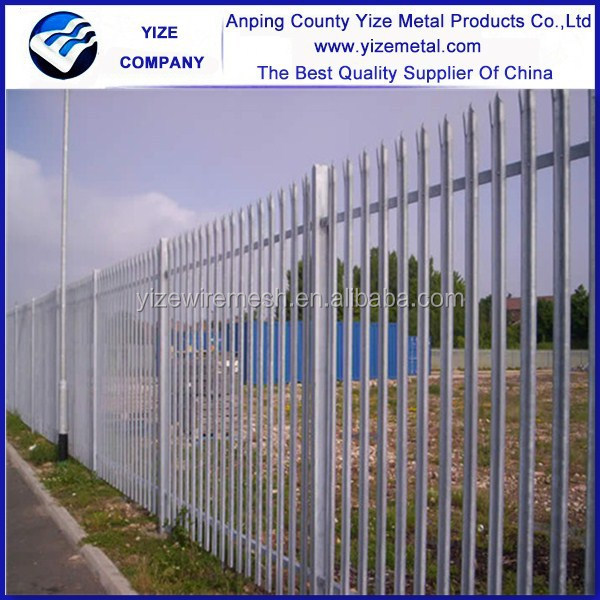

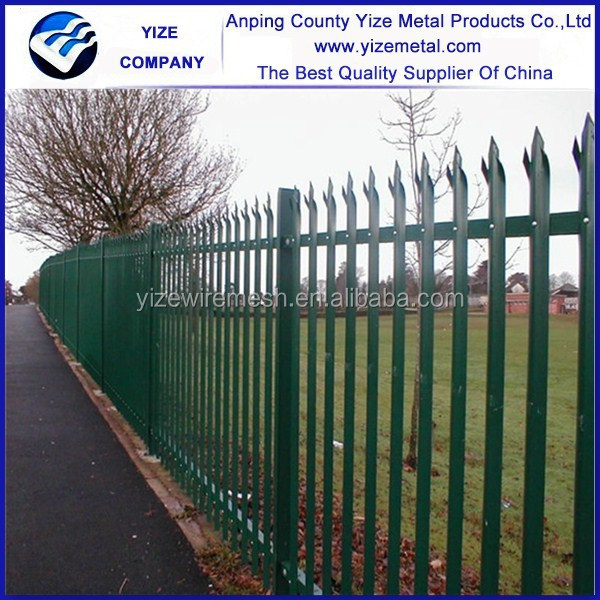

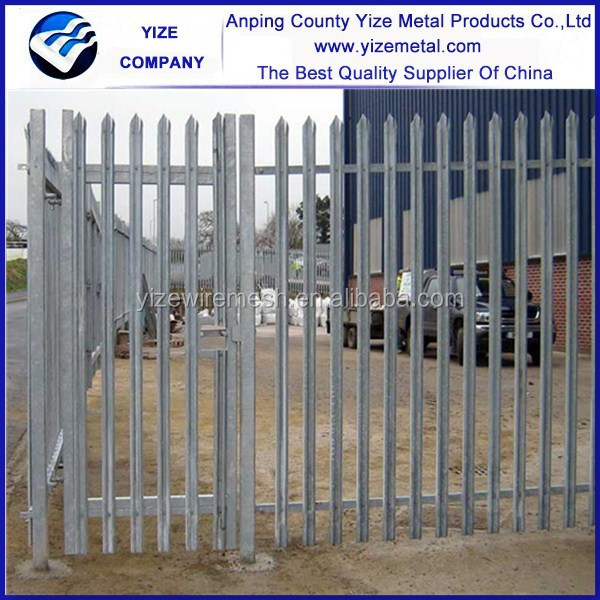

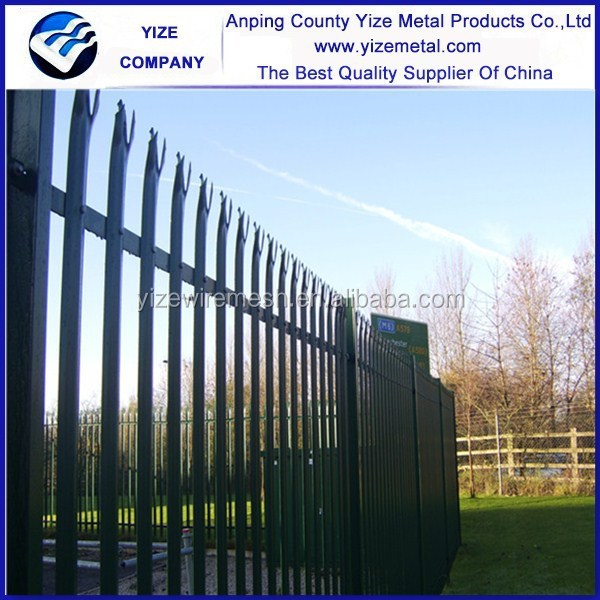

Palisade fencing is strong, durable and fulfils many demanding roles. It is regularly used around industrial units, civic amenities, schools and other such applications where security is a major concern.
The security level of palisade can be increased by increasing the height of the fence, increasing the number of pales per panel, increasing the thickness of pale, adding a concrete plinth.

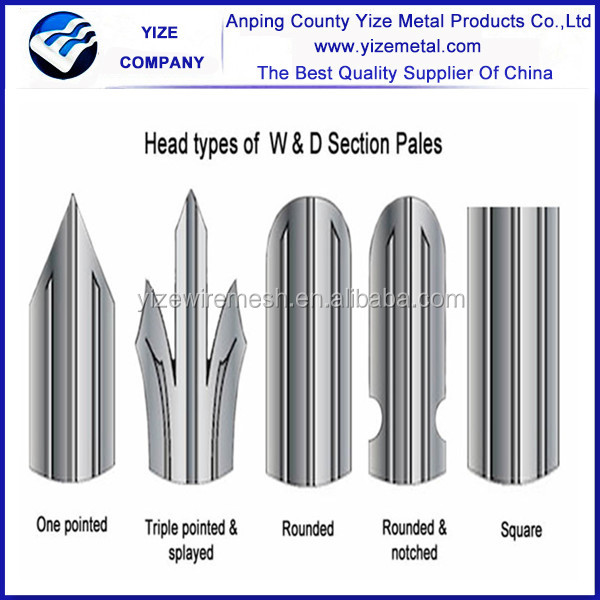

Pale tops can be triple pointed or round and notched.

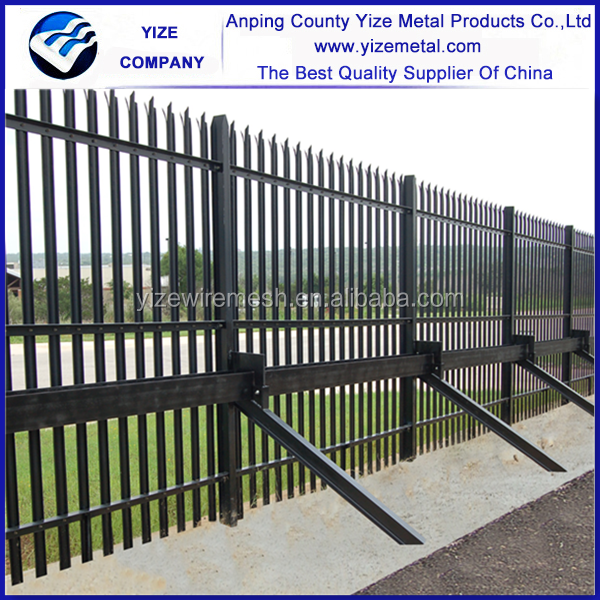

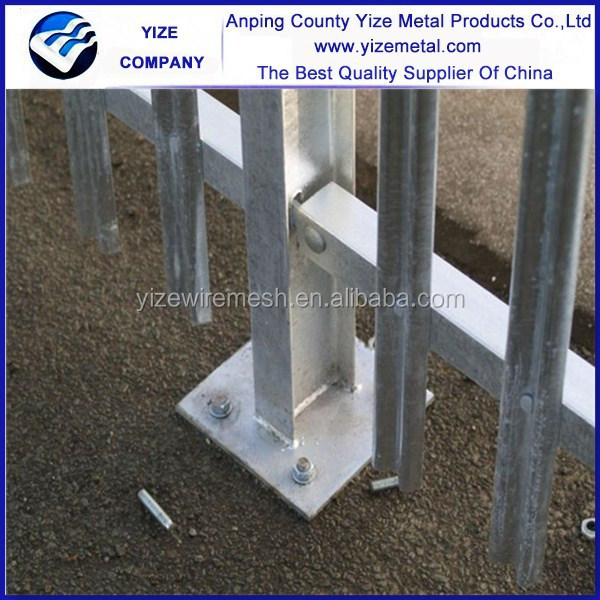

Palisade fencing panel is typically erected by setting the posts in individual concrete foundations but it can also be surface mounted on a concrete base or wall mounted using straight or cranked posts.
Palisade fencing is available in welded panel form and also in component form for undulating ground conditions. Palisade panel can be hot dipped zinc coated or powder coated in a full range of colours.
With a choice of over 100 RAL and British Standard colours to choose from a pleasing appearance with additional protection is ensured.
4 .Palisade fence Specifications
YIZE Palisade is available in the following:
- British Standard BS 1722 Part 12 General (GP) and Security (SP) purpose specifications
- CEGB and Regional Electricity Board specifications.
- British Gas Fen 5 and Fen 6 specification
- Network Rail fencing specification
- Paramount Portcullis specification
- Paramount standard specification or Clients own specification.

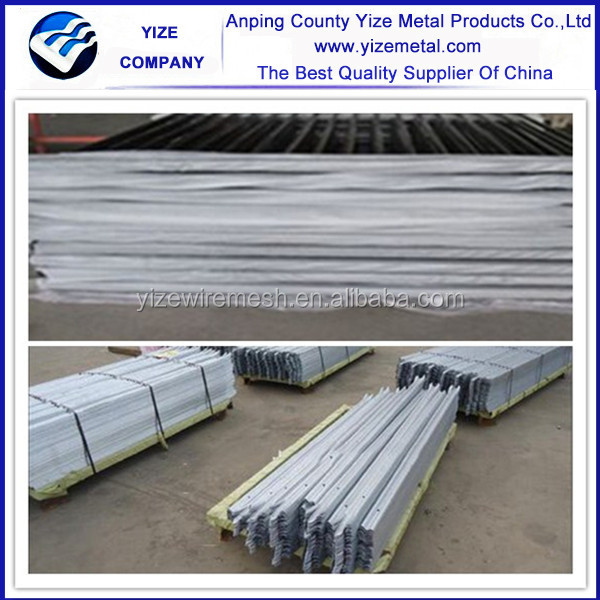

5.packing and shipping :
